Fitment Notes (Required for use with the below vehicles when paired with our Terraform 1/5 Tires):
- Required for Traxxas X-MAXX
- Required for Traxxas XRT
See Terraform Tire HERE.

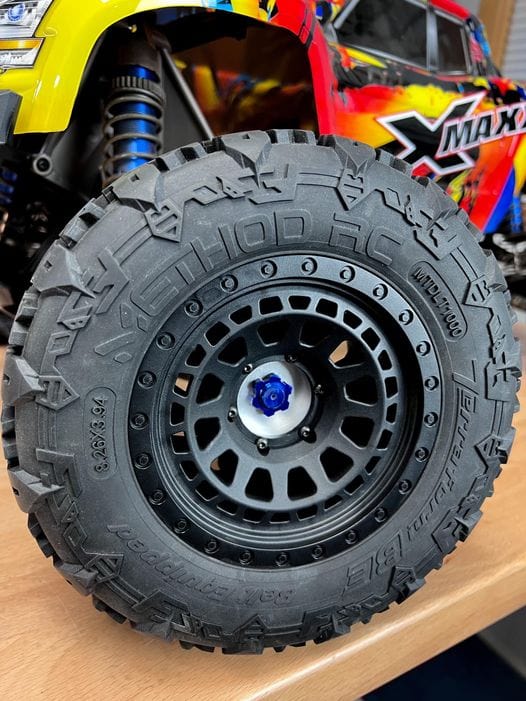

The 6 x 40mm / 12.5mm Offset 24mm Hex works in unison with our 1/5th Array 6 x 40mm bolt pattern wheel. This particular offset works perfect for adapting the 1/5th Array wheel with Terraform Belt Equipped tire (part# MTDLT1200) to an X-MAXX. More wheel options including standalone wheels and tires will be available in the future.
Made from 6061 Billet Aluminum, the adaptors are set-up with longevity in mind. Coupled with an anodized finished, they are designed for use after use and for transferring from wheel-to-wheel. A multi use adaptor is environmentally friendly :).

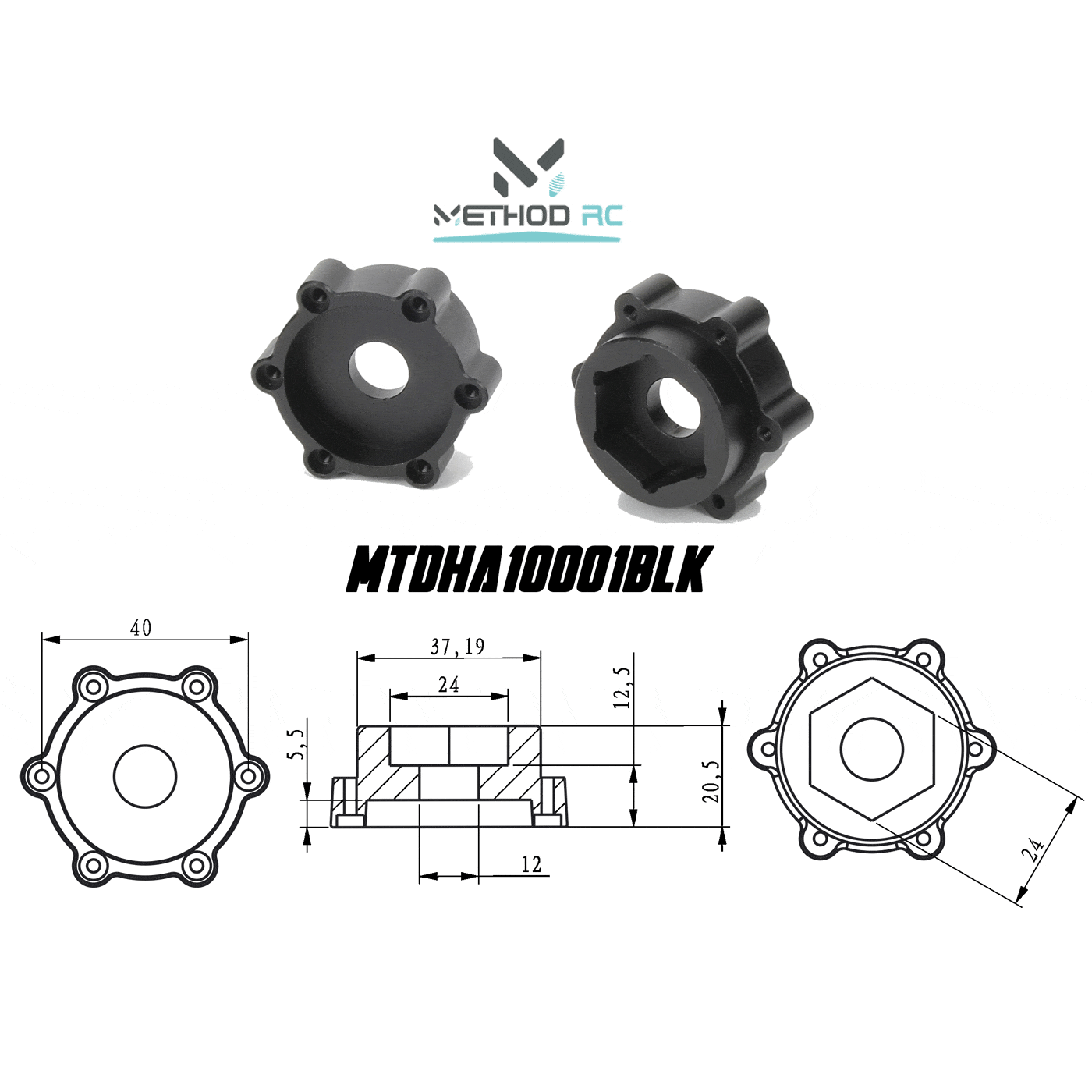

Hex Adaptor Specifications
Offset - 12.5mm. The offset is determined from the mounting surface of the wheel, not the center point of the wheel.
Hex Size - 24mm
Bolt Pattern - 6 x 40mm (6 represents the amount of screws that attach to the wheel and 40mm represents the distance from one bolt to the other, from one side of the hex to the other)
Material - 6061 Aluminum
Coating - Black Anodized or Clear Anodized
- 6 x 40mm / 12.5mm Offset 24mm Hex Adaptors x 2
I bought the terraform tires and these adaptors for my x-maxx. Tires and everything look awesome but after one run my stub axles are ruined. The metal nut that holds the tire on does not create enough friction to solidly hold on to these metal adaptors. After about 20 minutes of running one tire flew off and all the others had come loose. Had to replace all of the stub axles and nuts that hold the tires on. These wheels/tires look great but they need to be redesigned or fixed to properly stay on. Very disappointed. Spent roughly ~$220 on 4 wheels and 4 adaptors and I can’t use them.

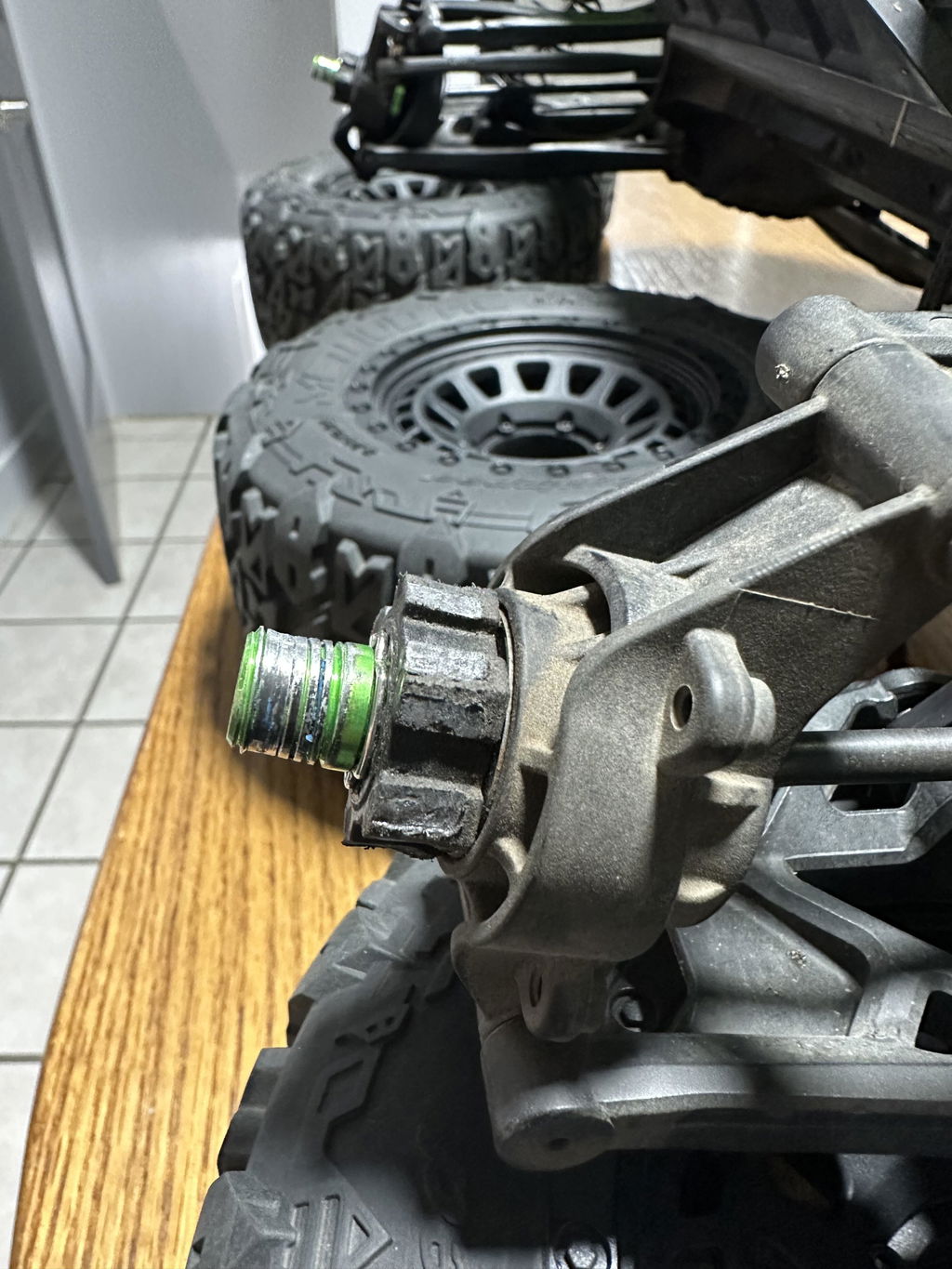

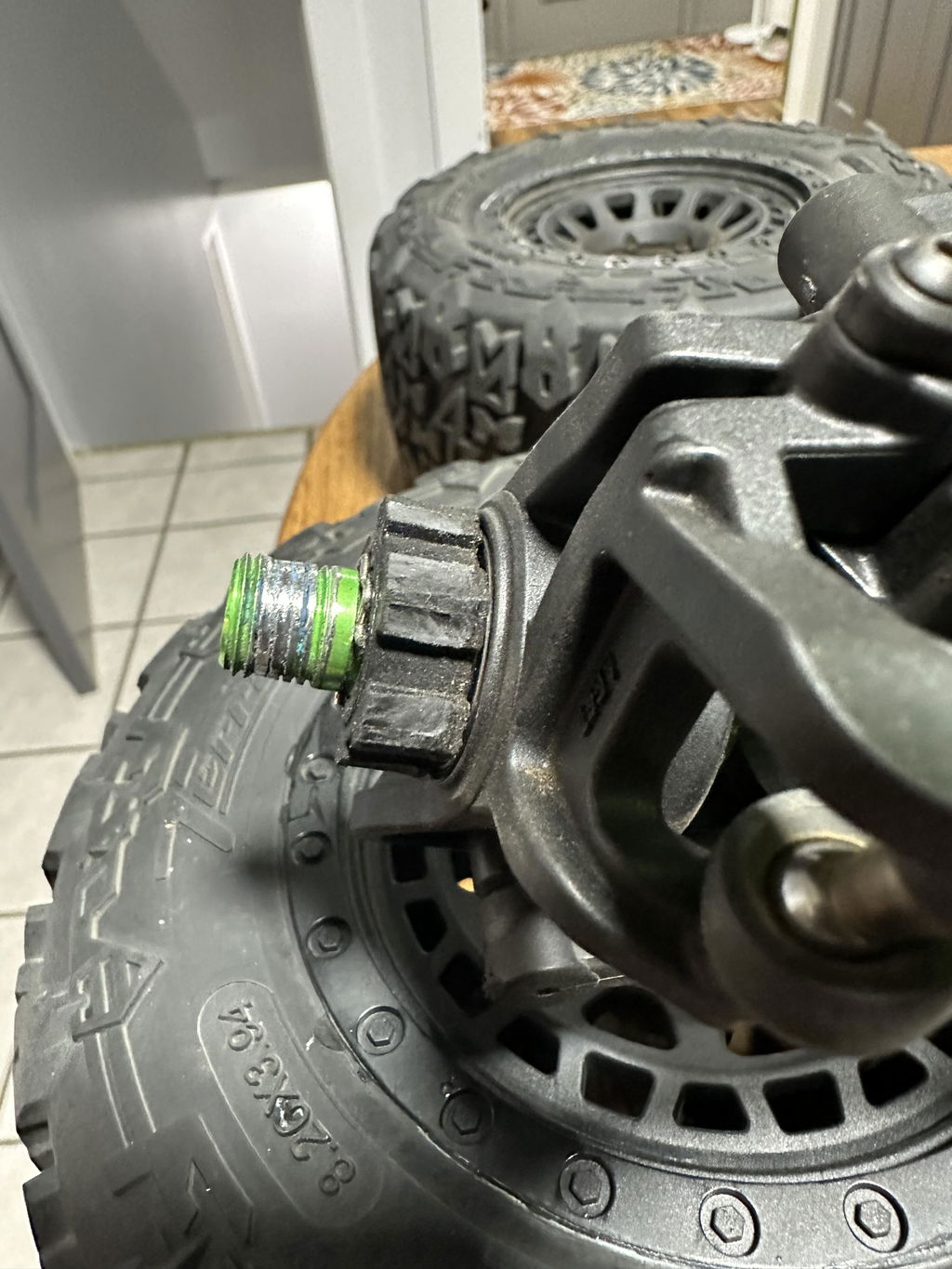

Quality is good, but the execution is awful. The stub axles for Xmaxx and XRT are aluminum, and the clip is steel. The clip will literally stamp its shape into the back of the adapter. Meanwhile the metal on metal causes wheel nuts to come off quite easily and ruin any serration they have to grip other plastic hexes. These will ruin your stub axle threads as well as your wheel nuts plain and simple.
I love the tread and the feel of the rubber . Makes my car look aggressive
6 X 40mm / 12.5mm Offset 24mm Hex Adaptor, for use with Traxxas XRT/X-MAXX, (2pcs)
