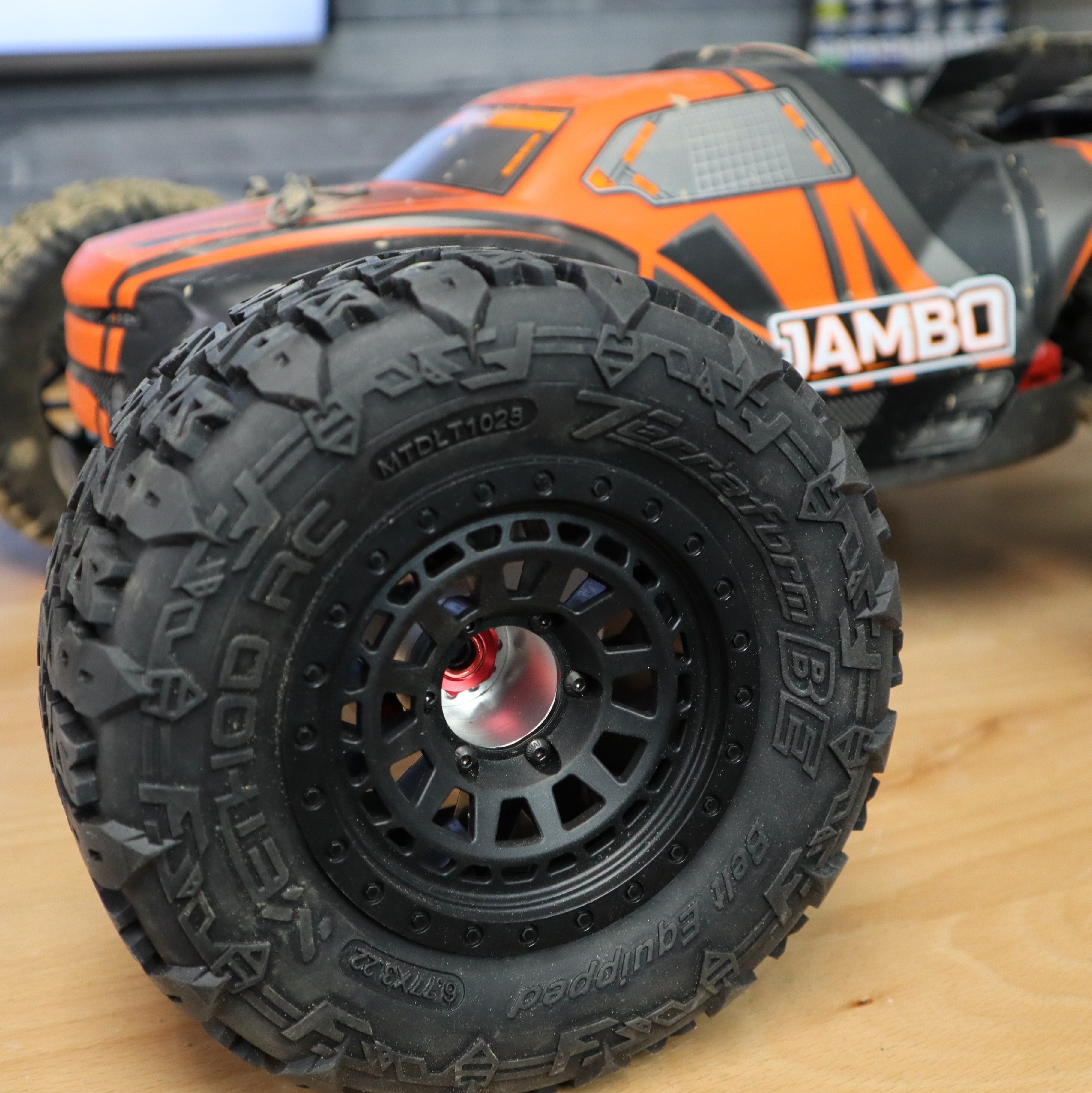

When using the MTDLT1025 Terraform Tire/Wheel combo, this adaptor works perfect with the Arrma Fireteam, Corally Jambo XP, HPI Savage, Traxxas MAXX and all Revo Platforms with 17mm hex.
The 6 x 32mm / 21mm Offset Hex works in unison with any of our 6 x 32mm bolt pattern wheels. This particular offset works perfect for adapting our Array wheel with Terraform Belt Equipped tire (part# MTDLT1025).
Made from 6061 Billet Aluminum, the adaptors are set-up with longevity in mind. Coupled with an anodized finished, they are designed for use after use and for transferring from wheel-to-wheel. Our multi use adaptor is environmentally friendly :).
Offset - 21mm. The offset is determined from the mounting surface of the wheel, not the center point of the wheel.
Hex Size - 17mm
Bolt Pattern - 6 x 32mm (6 represents the amount of screws that attach to the wheel and 32mm represents the distance from one bolt to the other, from one side of the hex to the other)
Material - 6061 Aluminum
Coating - Black Anodized
6 x 32mm / 12mm Offset Hex Adaptor, Black (2pcs)
